Example On Spring Dependency In The Form Of Objects
Let us see one example for previous concept, dependency in the form of objects with <ref /> element
files required..
i am taking complete pojo / poji model this time, And mates this is ” very important and Exact concept of spring framework ” , make sure you understood this application from start to end point, if you are not able to understand you may not able to continue with the remaining concepts 🙂
i will try to explain clearly in my own way….
- Journey.java
- Travel.java
- Vehicle.java
- Car.java
- Bus.java
- spconfig1.xml
- spconfig2.xml
- ClientLogic.java
Journey is the interface, and Traveler is the implemented class
Journey.java
public interface Journey
{
void startJournty();
}Travel.java
public class Travel implements Journey
{
Private Vehicle v;
public void setV(Vehicle v)
{
this.v = v;
}
public void startJorunty()
{
System.out.println("Journey been started....");
v.move();
}
}
Vehicle is the interface, Car and Bus are the implemented classes
See Traveler Class is depends on Vehicle object
Vehicle.java
public interface Vehicle
{
void move();
}Car.java
package java4s;
public class Car implements Vehicle{
private String fuelType;
private int maxSpeed;
public String getFuelType() {
return fuelType;
}
public void setFuelType(String fuelType) {
this.fuelType = fuelType;
}
public int getMaxSpeed() {
return maxSpeed;
}
public void setMaxSpeed(int maxSpeed) {
this.maxSpeed = maxSpeed;
}
public void move()
{
System.out.println("Fuel type :" +fuelType);
System.out.println("max speed :" +maxSpeed);
System.out.println("car started....");
}
}Bus
package java4s;
public class Bus implements Vehicle{
private int maxSpeed;
public int getMaxSpeed() {
return maxSpeed;
}
public void setMaxSpeed(int maxSpeed) {
this.maxSpeed = maxSpeed;
}
public void move()
{
System.out.println("max speed :" +maxSpeed);
System.out.println("Bus started....");
}
}spconfig1.xml
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN 2.0//EN" "http://www.springframework.org/dtd/spring-beans-2.0.dtd"> <beans> <bean id="id1" class="java4s.Car"> <property name="fuelType" value="Diesel" /> <property name="maxSpeed" value="100" /> </bean> <bean id="id2" class="java4s.Bus"> <property name="maxSpeed" value="80" /> </bean> </beans>
spconfig2.xml
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN 2.0//EN" "http://www.springframework.org/dtd/spring-beans-2.0.dtd"> <beans> <bean id="id3" class="java4s.Travel"> <property name="v"> <ref parent="id2" /> </property> </bean> </beans>
ClientLogic.java
package java4s;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class ClientLogic {
public static void main(String[] args)
{
Resource res1 = new ClassPathResource("spconfig1.xml");
BeanFactory factory1 = new XmlBeanFactory(res1);
Resource res2 = new ClassPathResource("spconfig2.xml");
BeanFactory factory2 = new XmlBeanFactory(res2,factory1);
Object o = factory2.getBean("id3");
Journey j = (Journey)o;
j.startJourney();
}
}Explanation:
- ClientLogic.java is our client application, i mean it contains our business logic
- Journey, Vehicle are two interfaces in our application
- No confusion, i have taken all the classes with some implementation, i will tell you the reason why… ?
- Now come to the configuration files, i have been taken 2 configuration xml (for explaining local, parent, bean attribute concept 🙂 )
Now see execution flow…………….
Actually we have 2 configuration files right, so in our client logic we need to define factory object two times [ ClientLogic.java, line numbers, 12,13 – 15,16 ]. In factory1 object, i have been taken spconfig1.xml [ ClientLogic.java, Line number 12 ], where Car,Bus classes been configured. factory2 knows factory1, as we included factory1 object in factory2 [ see line number 16, ClientLogic.java ]
Once we call id3 in ClientLogic.java, then spring container will move to spconfig2.xml and checks, there property v depends on other class right, and we given parent=id2, then control move to spconfig1.xml and finds id2 –> creates Bus class object, and will send back that Bus object to our client program
According to our program Bus object will be injected into the Traveler finally and there after we will get it into client application, and we can change id2 to id1 in the spconfig2.xml for getting Car object, with our recompilation 😉
Huuuu, mates hope you got what am saying, 🙂
This is the complete POJO / POJI Model of spring, i will tell you why we need to take Interface for every class like above, you might have known with this example, but no problem i will rise this topic in the next sessions.

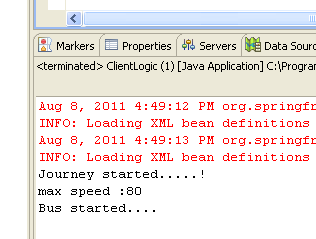

Output:
